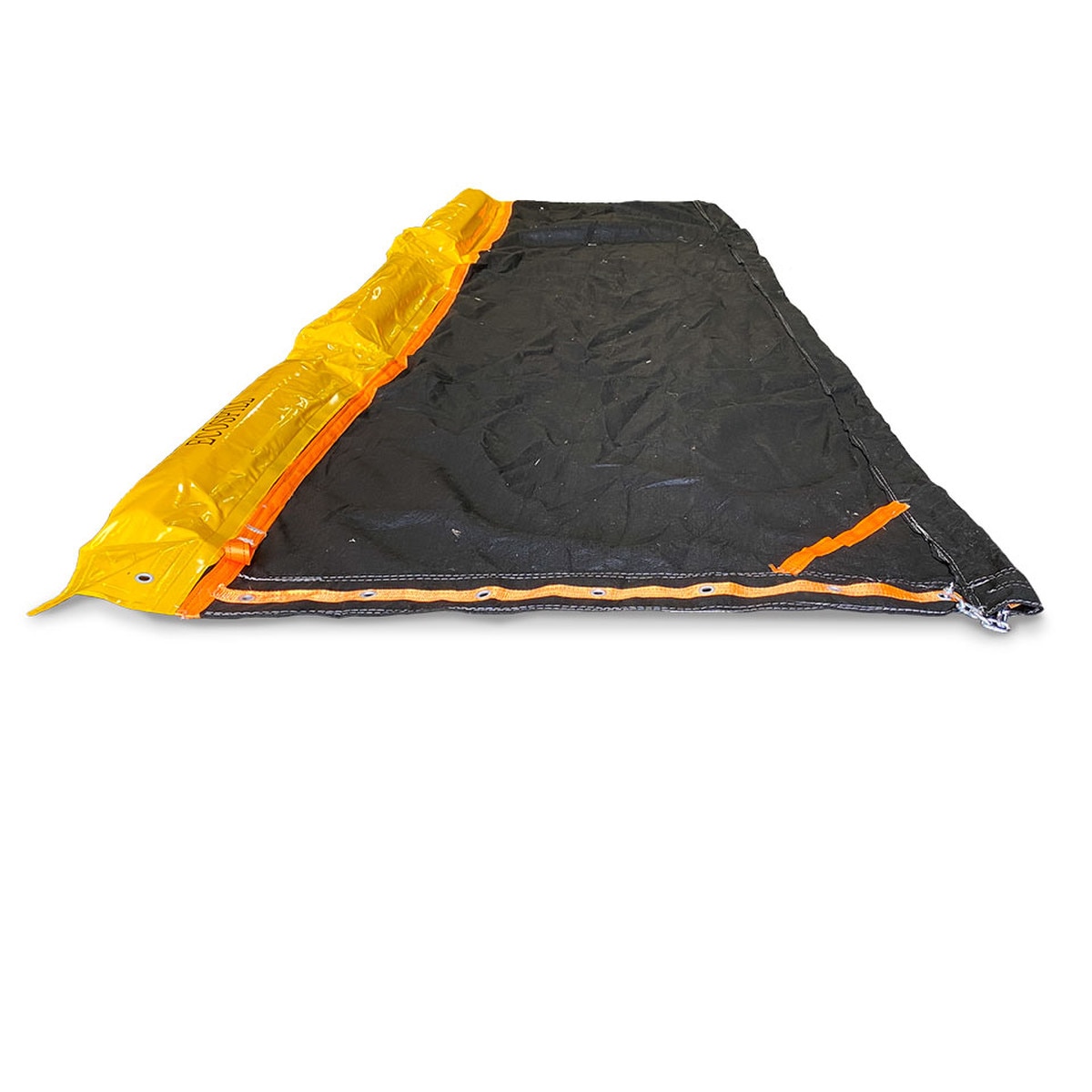

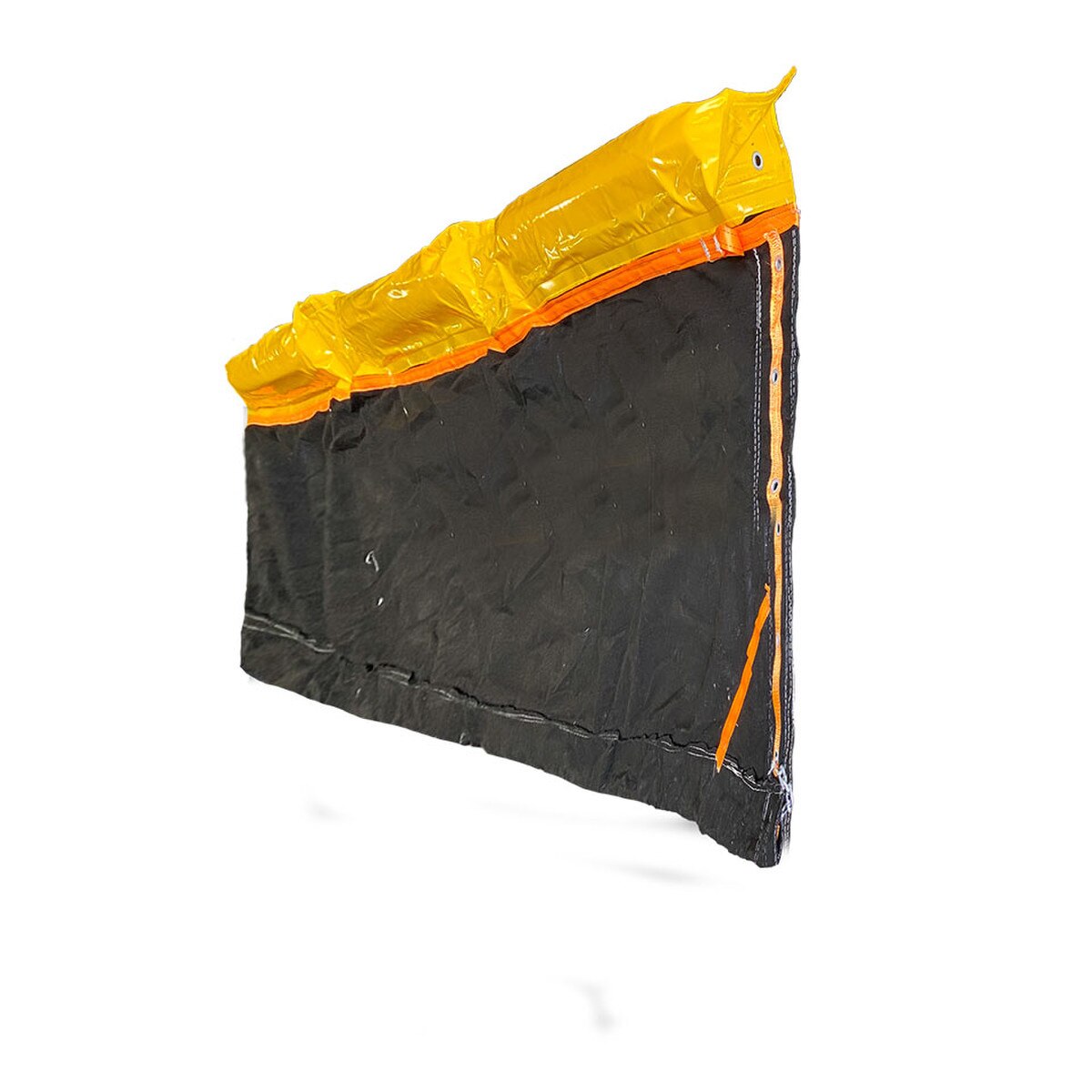

Ecospill Silt Curtain 1m Skirt x 10m

The Ecospill Silt Curtain 1m Skirt x 10m is a high-quality floating sediment control barrier designed to contain suspended solids and reduce turbidity in waterways. This Type 1 silt curtain is specifically engineered for use in dams, rivers, and smooth water environments, where there is minimal current, wave action, or tidal influence.

By isolating disturbed areas and slowing the movement of water, the curtain helps suspended sediment settle naturally to the bottom, supporting effective environmental protection and regulatory compliance.

What Is a Type 1 Silt Curtain?

A Type 1 silt curtain (also known as a turbidity curtain) is designed for low-energy water conditions, including:

• dams and retention basins
• calm rivers and creeks
• lakes and ponds
• smooth water with no tidal flow

The Ecospill Type 1 Silt Curtain is ideal where water movement is minimal, allowing sediment to settle efficiently without being carried downstream.

Key Features

• 1m skirt depth x 10m length
• Designed as a Type 1 silt curtain
• Suitable for dams, rivers, and calm water applications
• Durable geofabric skirt for sediment containment
• 100mm float for reliable buoyancy
• 6mm ballast chain for stability and vertical positioning
• Ready to deploy on site
• Modular design for connecting multiple sections
• Available in other skirt depths and lengths

How It Works

The Ecospill Silt Curtain acts as a floating barrier that extends below the water surface. The skirt slows water movement and traps suspended sediment within the contained area.

This controlled environment allows:

• suspended particles to settle naturally
• reduced downstream sediment migration
• improved water clarity outside the work zone

Typical Applications

Ecospill silt curtain booms are widely used across industries for effective sediment control:

• construction site runoff management
• dredging and dredge spoil containment
• mine tailings dams and settling ponds
• aquatic weed and vegetation control
• containment of algae blooms and contaminants

Explore Other Silt Curtain Options

For projects requiring different depths or longer continuous runs, Ecospill offers additional configurations:

• 2m Drop Silt Curtain – ideal for deeper water containment and increased sediment control capacity
• 1m Drop Silt Curtain (20m Length) – suitable for covering larger areas with fewer connections

Why Choose Ecospill Silt Curtains?

Ecospill products are designed for durability, performance, and ease of use in Australian conditions. The Type 1 Silt Curtain 1m x 10m provides a practical and effective solution for managing sediment in calm water environments.

Frequently Asked Questions

What is the difference between a Type 1, Type 2, and Type 3 silt curtain?

• Type 1: Designed for calm, smooth water (no tides or strong currents)
• Type 2: Suitable for moderate flow and light wave action
• Type 3: Built for harsh conditions, including tidal and open water environments

Where can a Type 1 silt curtain be used?

A Type 1 silt curtain is best used in dams, lakes, ponds, and calm rivers, where water movement is minimal and sediment can settle effectively.

How deep should a silt curtain skirt be?

The skirt depth depends on the application. A 1m skirt is suitable for shallow water or light sediment control, while deeper water or higher sediment loads may require a 2m or greater drop.

Can multiple silt curtains be connected together?

Yes, Ecospill silt curtains are designed to be modular, allowing multiple sections to be connected to achieve the required length for your project.

Is this silt curtain suitable for tidal or fast-flowing water?

No, this is a Type 1 silt curtain, which is not suitable for tidal conditions or strong currents. For those environments, a Type 2 or Type 3 curtain is recommended.

Product Summary

The Ecospill Silt Curtain 1m Skirt x 10m is a dependable Type 1 turbidity curtain designed for dams, rivers, and smooth water applications. It provides effective sediment containment, supports water quality management, and is easy to deploy across a range of low-risk environments.
